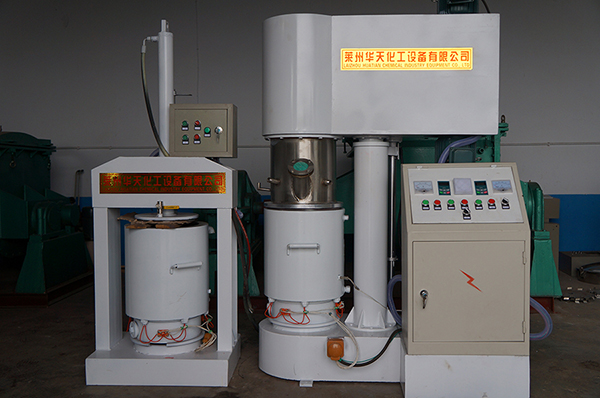

“Huatian”HT-SXX series of Double Planetary Power Mixer are new type high efficiency mixing equipment being researched and developed and improved independently by ourselves based on digestive absorption of advanced technology from home and abroad.
This series of equipment are widely used in industries of electronics, chemicals,foodstuff,medicines,building materials,agrochemicals etc. for mixing,reacting,dispersing,dissolving,homogenizing and emulsifying of solid-solid,solid-liquid,liquid-liquid materials like fluid of polymer lithium-ion battery,liquid lithium-ion battery fluid,electronic electrode paste, adhesive,molding adhesive,silicone adhesive,PU sealants,anaerobic adhesive,printing ink,pigments,cosmetics,ointment etc.
Technical Data:
|
Model |
HT-SXX2 |
HT-SXX15 |
HT-SXX25 |
HT-SXX60 |
HT-SXX100 |
HT-SXX200 |
HT-SXX300 |
HT-SXX500 |
HT-SXX1000 |
|
|
Volume |
2L |
15L |
25L |
60L |
100L |
200L |
300L |
500L |
1000L |
|
|
Tank Size（mm） |
Ф250*200 |
Ф300*300 |
Ф350*350 |
Ф450*500 |
Ф550*550 |
Ф750*600 |
Ф750*800 |
Ф1000*850 |
Ф1250*1000 |
|
|
Revolution Motor（kw） |
0.75 |
1.5 |
2.2 |
3 |
4 |
7.5 |
11 |
22 |
30 |
|
|
Revolution Speed（Variable Speed by Frequency Inverter）（RPM） |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 |
|
|
Autorotational Speed(Variable Speed by Frequency Inverter)（RPM） |
0-70 |
0-70 |
0-70 |
0-70 |
0-70 |
0-60 |
0-60 |
0-45 |
0-45 |
|
|
Disperser Motor（kw） |
0.75 |
1.5 |
2.2 |
4 |
5.5 |
11 |
11 |
30 |
37 |
|
|
Dispersing Speed(Variable Speed by Frequency Inverter)（RPM） |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
|
|
Scraper Speed(Variable Speed by Frequency Inverter)（RPM） |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 |
|
|
Vacuum Degree（MPa） |
|
|
|
|
|
|
|
|
|
|
|
Lifting Stroke（mm） |
200 |
400 |
500 |
600 |
650 |
700 |
900 |
1000 |
1100 |
|
|
Weight（kg） |
250 |
800 |
1000 |
1750 |
2500 |
3000 |
3500 |
4500 |
6500 |
|
|
Outer Size |
L（mm） |
700 |
960 |
1150 |
1900 |
2500 |
2500 |
2640 |
2670 |
2900 |
|
W（mm） |
400 |
450 |
530 |
1000 |
1000 |
1000 |
1080 |
1100 |
1400 |
|
|
H（mm） |
1700 |
2000 |
2300 |
2400 |
2500 |
2500 |
2650 |
3600 |
3900 |
|
|
Lifting Mode |
Manual（2L）、Pneumatic、Hydraulic |
|||||||||
